Providing a new path to the future of agriculture
|
Model |
BG2-105 BK2-105 |
BG2-120 BK2-120 |
BG2-135 BK2-135 |
BG2-150 BK2-150 |
BG2-180 BK2-180 |
BG2-210 BK2-210 |
|
Cutting Width (cm/ft) |
105 / 3'5" |
120 / 3'11" |
135 / 4'5" |
150 / 4'11'' |
180 / 5'11" |
210 / 6'11" |
|
Number of Flails (2.2kg / 5 lbs) |
6 |
8 |
8 |
9 |
12 |
12 |

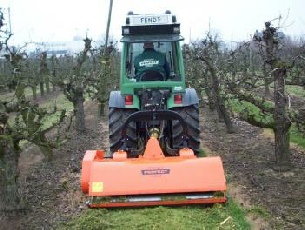

These very low and compact flail pruning choppers are designed to chop grass and prunings, in among others, orchards and vineyards up to 8 cm (3 ¼") diameter. Standard features include:
- Tractor 3-pt. linkage cat. I + II
- PTO speed 540 rpm
- Walterscheid PTO shaft
- Drive through 3 V-belts with automatic spring loaded tensioner
- Low construction; max. height over the entire width 51½ cm (20")
- Flail rotor bearings mounted in the inside to limit the overall width
- Mechanically parallelogram-type offset system
- Rear roller with conical ends and special covers over the bearings
- Flails mounted to the twofold electronically balanced vibration-free flail rotor with heavy 20 mm bolts and replaceable steel bushes
- Rear rake tines (model BK2)
Optional Features:
- PTO shaft with overrunning clutch
- 0.8 kg (1¾ lbs) flails instead of 2.2 kg (5 lbs) flails
- Ram for hydraulic offset adjustment
- Front mounted models
- Wearing plates Plates for improved leaf chopping
- 2 pneumatic rear wheels 6.00 x 9 instead of the rear roller
Series BG2 / BK2
Extra low and compact flail chopper
